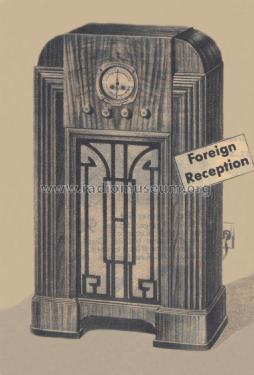

Air Castle LP4508 Ch= 20C5
Spiegel Inc. (Continental); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 59419
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Air Castle LP4508 Ch= 20C5 - Spiegel Inc. Continental;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 22 x 39 x 11.5 inch / 559 x 991 x 292 mm
- Price in first year of sale
- 69.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- Spiegel Catalogs (Aircastle) (Spring/Summer 1935, No. 139, page 151.)
- Literature/Schematics (1)
- Riders 9-23
