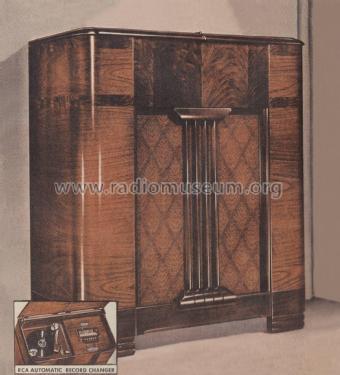

Air Castle AP2080 Ch= 7C-Ph
Spiegel Inc. (Continental); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 59647
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Air Castle AP2080 Ch= 7C-Ph - Spiegel Inc. Continental;
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 30 x 35 x 16 inch / 762 x 889 x 406 mm
- Notes
-
Model Differences AP2080 Base model AP2081 Base model with all-wave doublet aerial included
- Price in first year of sale
- 69.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Mentioned in
- Spiegel Catalogs (Aircastle) (Spring/Summer 1940, No. 149, page 461.)
- Literature/Schematics (1)
- Riders 12-21 , 12-22
