Air Castle AP2151 Ch= 611
Spiegel Inc. (Continental); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 299778
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Dry Batteries / 90 & 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Air Castle AP2151 Ch= 611 - Spiegel Inc. Continental;
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 22 x 37 x 10 inch / 559 x 940 x 254 mm
- Notes
-
Model Differences AP2150 1 1/2-volt battery operated with pack included AP2151 1 1/2-volt battery pack and all-wave doublet aerial included AP2152 1 1/2-volt battery operated with upgraded battery kit included AP2153 1 1/2-volt battery operated with upgraded battery kit and all-wave doublet aerial included AP2250 6-volt battery operated AP2251 6-volt battery operated with all-wave doublet aerial included AP2252 6-volt battery included AP2253 6-volt battery and all-wave doublet aerial included
- Price in first year of sale
- 42.95 $
- Mentioned in

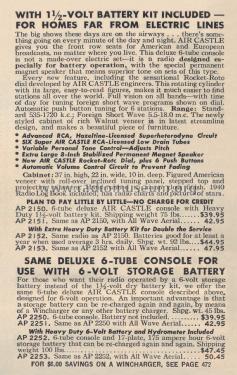

- Spiegel Catalogs (Aircastle) (Spring/Summer 1940, No. 149, page 462.)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 12 = ca. 1941 and before (pages 12-25 and 12-29)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
