Air Castle BP6503
Spiegel Inc. (Continental); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 304252
- Number of Tubes
- 8
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz; 105 - 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Air Castle BP6503 - Spiegel Inc. Continental;
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 20 x 10.5 x 9.625 inch / 508 x 267 x 244 mm
- Notes
-
Model Differences BP6502 Base model BP6503 Base model with all-wave aerial included
- Price in first year of sale
- 27.95 $
- Mentioned in

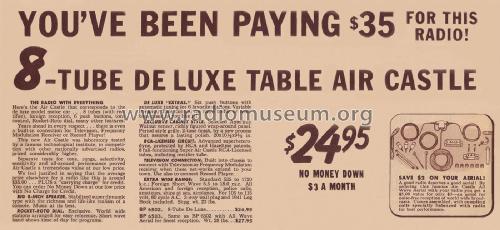

- Spiegel Catalogs (Aircastle) (Spring/Summer 1942, No. 153, page 518.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
