Air Castle WP260
Spiegel Inc. (Continental); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 299071
- Number of Tubes
- 8
- Valves / Tubes
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org

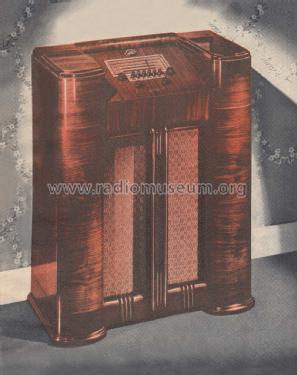

- Model: Air Castle WP260 - Spiegel Inc. Continental;
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 26.5 x 34.5 x 13.25 inch / 673 x 876 x 337 mm
- Notes
-
Model Differences WP260 Battery operated WP261 Battery operated with all-wave doublet antenna system included WP262 6-volt battery included WP263 6-volt battery and all-wave doublet antenna system included Note: The schematic for these models is believed to be similar to the Air Castle WP254. The difference may be the addition of a tuning eye tube for these models.
- Price in first year of sale
- 49.95 $
- Mentioned in

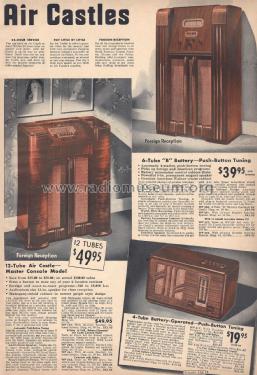

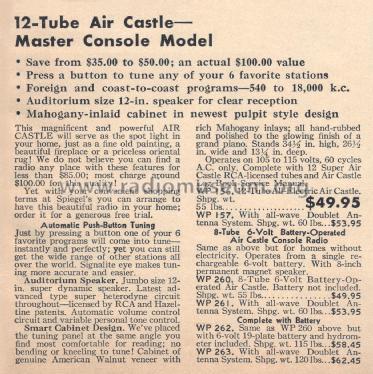

- Spiegel Catalogs (Aircastle) (Spring/Summer 1939, No. 147, page 355.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
