Air Castle WP402 Ch= 9-627
Spiegel Inc. (Continental); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1939
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 299371
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Air Castle WP402 Ch= 9-627 - Spiegel Inc. Continental;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 6 x 5.75 x 13 inch / 152 x 146 x 330 mm
- Notes
-
Model Differences WP400 Base model WP401 Base model with hinge type auto aerial included WP402 Base model for trucks WP403 Base model for trucks with hinge type auto aerial included
- Price in first year of sale
- 19.95 $
- Mentioned in

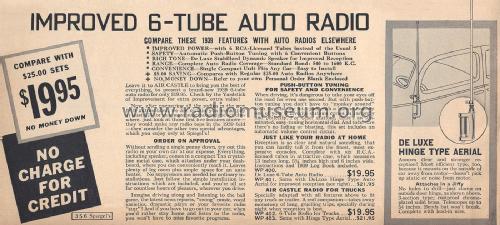

- Spiegel Catalogs (Aircastle) (Spring/Summer 1939, No. 147, page 356.)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 12 = ca. 1941 and before (pages 12-7 and 12-8)
