Aircastle 5015.1
Spiegel Inc. (Continental); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 341606

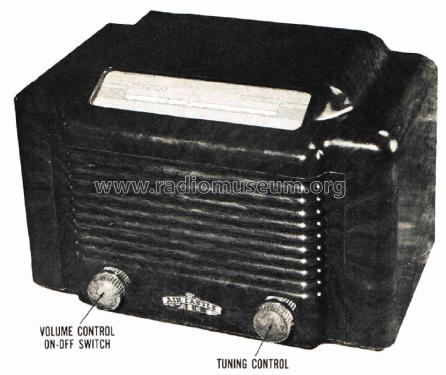

Picture from service manual.

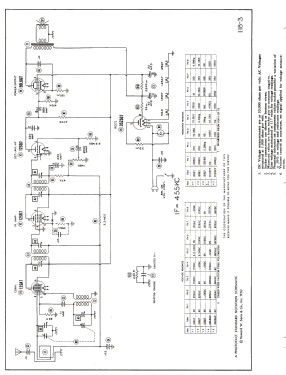

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117V = 110 -125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Aircastle 5015.1 - Spiegel Inc. Continental;
- Shape
- Book-shelf unit.
- Notes
-
Aircastle model 5015.1 is an AC-DC operated superheterodyne receiver with loop antenna.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 118, Folder 3 dated 12-50)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
