• Country
• United States of America (USA)

• Manufacturer / Brand
• Spiegel Inc. (Continental); Chicago

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 196475

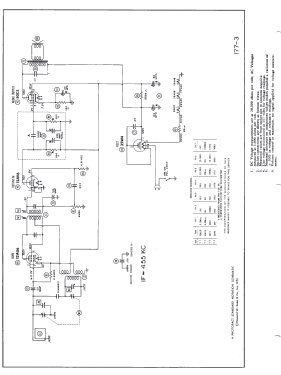

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AU6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / AC/DC 117V =110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

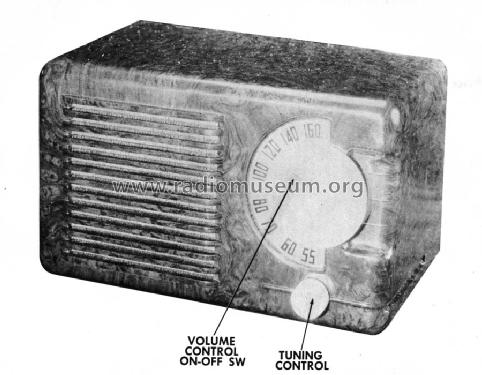

• Model: Aircastle 607.299 - Spiegel Inc. Continental;

• Shape
• Tablemodel, with any shape - general.

• Notes

• Aircastle model 607.299 is an AC-DC operated AM superheterodyne receiver.

• Literature/Schematics (1)

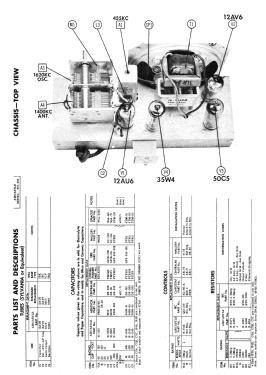

• Photofact Folder, Howard W. SAMS (Set 177, folder 3, dated 8-52)

• Author
• Model page created by Richard Watts. See "Data change" for further contributors.
