• Country
• United States of America (USA)

• Manufacturer / Brand
• Spiegel Inc. (Continental); Chicago

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 157647

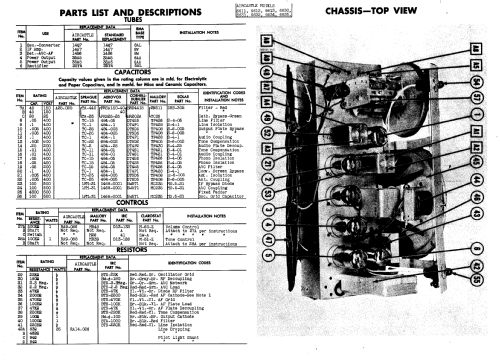

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 14Q7 14A7 14B6 35A5 35A5 35Y4

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• from Radiomuseum.org
• Model: Aircastle 6612 - Spiegel Inc. Continental;

• Notes
• The Aircastle model 6612 is an AC Operated Combination Radio-Phono Superheterodyne with Loop Antenna.
  This is NOT the same like model 6612 (ID: 59567) from same manufacturer!

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date: Mar 1947, Set 15, Folder 475-2)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.

• Other Models

• Here you find 1279 models, 552 with images and 1043 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Spiegel Inc. (Continental); Chicago
