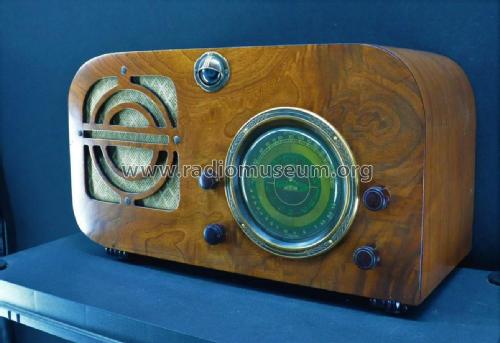

Unknown Table Radio
Spiegel Inc. (Continental); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1937 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 331725
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Unknown Table Radio - Spiegel Inc. Continental;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 18 x 8.5 x 10 inch / 457 x 216 x 254 mm
- Notes
-
This could be one of several Air Castle (Spiegel) models that used the same tubes.
- Author
- Model page created by Michael Boessen. See "Data change" for further contributors.
