Netzanschlussgerät 02 5014

Spindler & Hoyer; Göttingen

Data
Forum
Pictures
Collections

  • Year
  • 1960 ??
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 280866

 Technical Specifications

  • Number of Transistors
  • Wave bands
  • - without
  • Details
  • Power Supply (not only Batt.El.)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Netzanschlussgerät 02 5014 - Spindler & Hoyer; Göttingen
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 255 x 180 x 160 mm / 10 x 7.1 x 6.3 inch
  • Notes

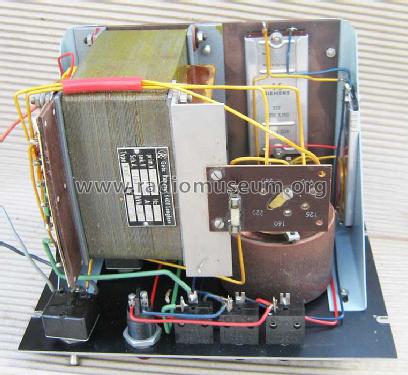

  • Netzanschlussgerät für Gleichstrom  0....210V 0,5A ( bei Wiederstandslast ) und Wechselstrom 12 V 4,5 A, Exp. Motor-Buchse 6 pol. und Drehrichtungsschalter,  Hammerschlag-Lackierung.

  • Net weight (2.2 lb = 1 kg)
  • 9 kg / 19 lb 13.2 oz (19.824 lb)
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
