• Country
• United States of America (USA)

• Manufacturer / Brand
• Splitdorf Electrical, Newark

• Year
• 1926

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 59852

• • alternative name: Edison-Splitdorf || Splitdorf Radio Corp.

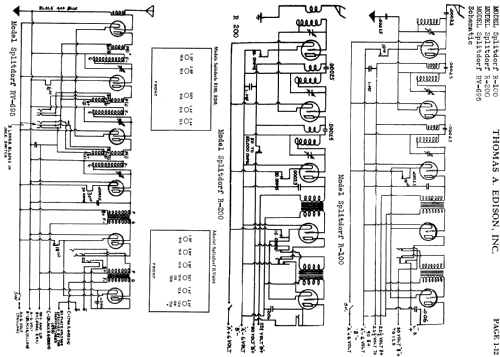

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UX201A UX201A UX201A UX201A or UX200A UX201A 12A or 71A

• Main principle
• TRF without regeneration; Neutrodyne

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Splitdorf RV-695 - Splitdorf Electrical, Newark

• Shape
• Tablemodel, slant panel.

• Notes
• Two dials (primary tuning control knobs) ; Rider's remark: Splitdorf see Edison. Edison had the same chasses.

• Price in first year of sale
• 95.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Radio Manufacturers of the 1920's, Vol. 3

• Literature/Schematics (1)
• Collector's Guide to Antique Radios (7th Edition)

• Other Models

• Here you find 40 models, 16 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
