• Country
• United States of America (USA)

• Manufacturer / Brand
• Sprague Electric Company; North Adams, MA

• Year
• 1953–1956

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 99476

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 1626 1626 1629

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

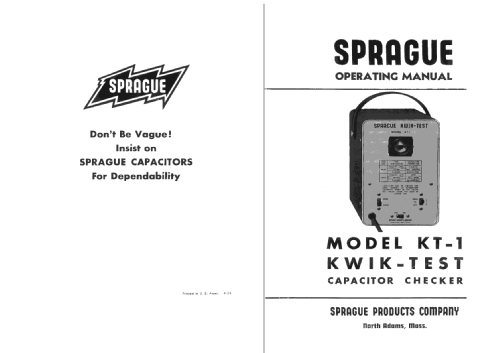

• Model: KT-1 Kwik-Test Capacitor Checker - Sprague Electric Company;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 152 x 228 x 133 mm / 6 x 9 x 5.2 inch

• Notes

• Range of capacitors: 30pF to 2,000uF.

• Net weight (2.2 lb = 1 kg)
• 6 lb (6 lb 0 oz) / 2.724 kg

• Price in first year of sale
• 34.00 $

• Literature/Schematics (1)
• Allied Radio Catalog Nº 150, 1956

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
