• Country
• United States of America (USA)

• Manufacturer / Brand
• Sprague Electric Company; North Adams, MA

• Year
• 1963 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 304090

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6C4 6AB4 6BL7GTA 6E5

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

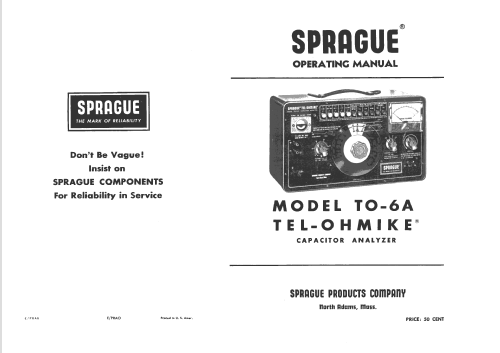

• Model: Tel-Ohmike - Capacitor Analyzer TO-6A - Sprague Electric Company;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 375 x 218 x 130 mm / 14.8 x 8.6 x 5.1 inch

• Notes

• This apparatus is intended to measure Capacitance, Power factor, Leakage Current and Insulation Resistance for the various capacitors types.

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Mentioned in
• -- Collector info (Sammler)

• Author
• Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
