Tel-Ohmike - Capacitor Analyzer TO-6
Sprague Electric Company; North Adams, MA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sprague Electric Company; North Adams, MA
- Year
- 1963 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 156875

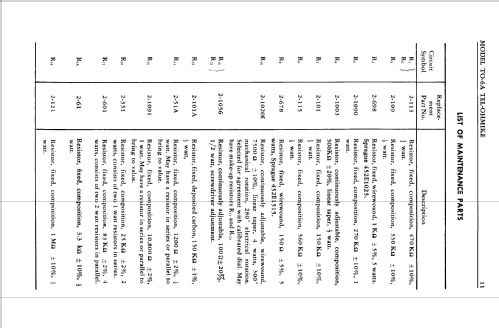

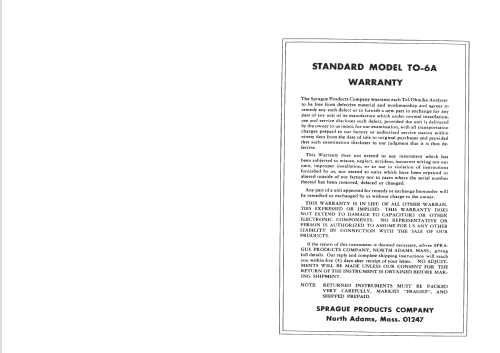

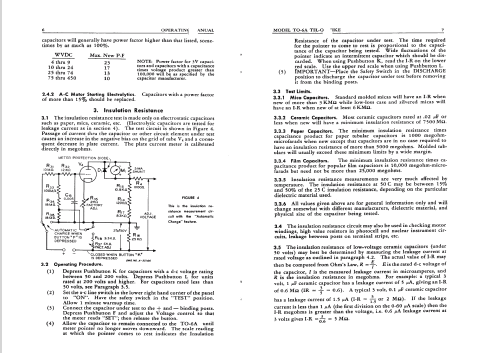

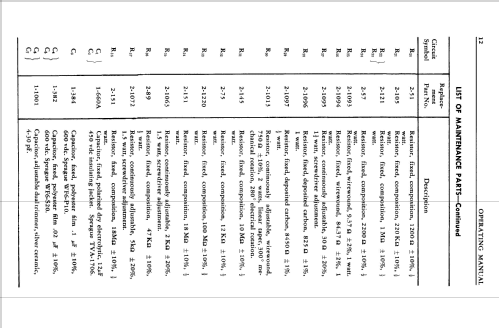

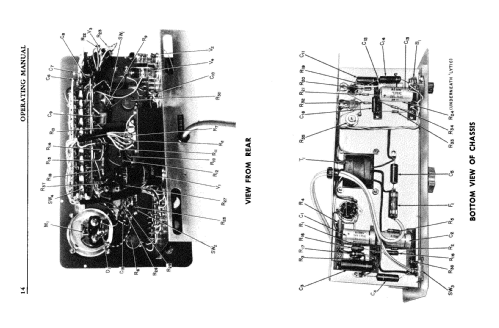

Manual

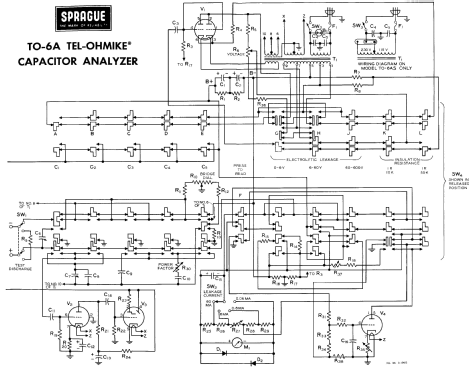

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: Tel-Ohmike - Capacitor Analyzer TO-6 - Sprague Electric Company;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 372 x 226 x 155 mm / 14.6 x 8.9 x 6.1 inch
- Notes
- This apparatus is intended to measure Capacitance, Power factor, Leakage Current and Insulation Resistance for the various capacitors types.
- Net weight (2.2 lb = 1 kg)
- 5.902 kg / 13 lb 0 oz (13 lb)
- Author
- Model page created by Meyer Rochwerger. See "Data change" for further contributors.
