• Country
• Italy

• Manufacturer / Brand
• SRE - Scuola Radio Elettra, Torino

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115180

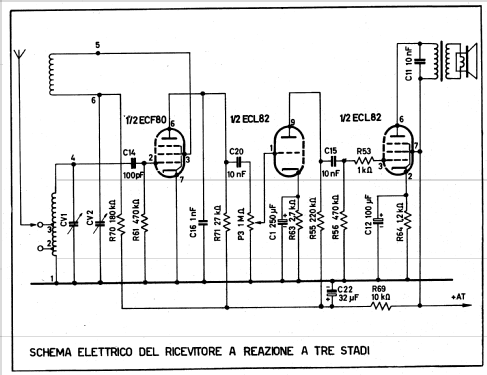

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECF80 ECL82

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 2.5 W (unknown quality)

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org
• Model: 2° Ricevitore sperimentale - SRE - Scuola Radio Elettra,

• Dimensions (WHD)
• 200 x 120 x 120 mm / 7.9 x 4.7 x 4.7 inch

• Notes

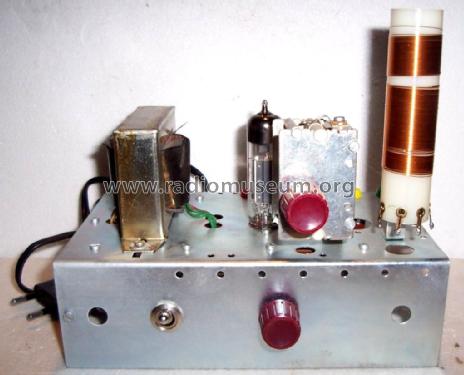

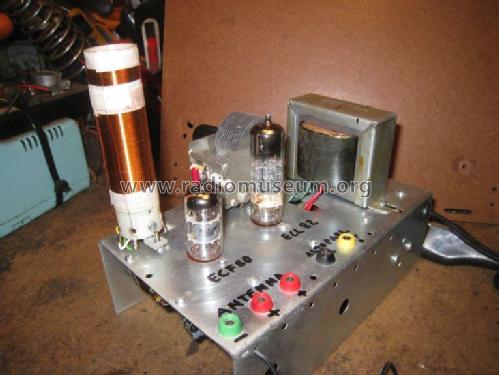

• Ricevitore sperimentale a reazione per onde medie 550-1500 KHz, ascolto con altoparlante esterno. L'alimentatore è sullo stesso telaio ed usa un diodo al selenio. Questo ricevitore fa parte del Corso Radio Stereo.

• Mentioned in
• - - Data from my own collection

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
