97 con giradischi
SRE - Scuola Radio Elettra, Torino
- Country
- Italy
- Manufacturer / Brand
- SRE - Scuola Radio Elettra, Torino
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 105386
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 467 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 97 [con giradischi] - SRE - Scuola Radio Elettra,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 480 x 280 x 280 mm / 18.9 x 11 x 11 inch
- Notes

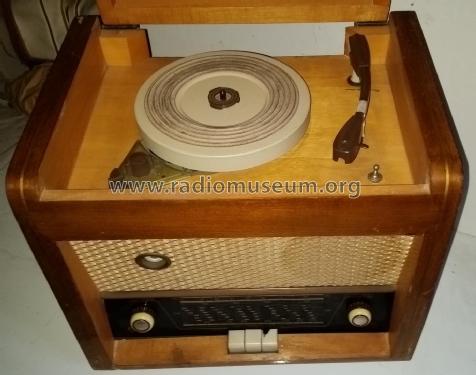

- Frequenza di ricezione OM 200-500 mt, OC 20-50 mt, ingresso phono per giradischi, il mobile doveva essere ordinato a parte. Unica variante era il mobile con giradischi incorporato, l'altezza dell'apparecchio variava da 280 mm a 350 mm.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
