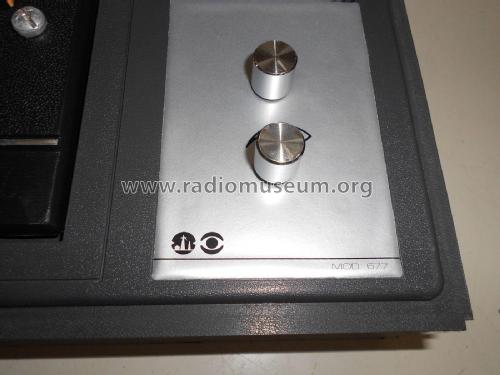

Giradischi 33/45 giri 677
SRE - Scuola Radio Elettra, Torino
- Country
- Italy
- Manufacturer / Brand
- SRE - Scuola Radio Elettra, Torino
- Year
- 1970 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 303857
- Number of Transistors
- Semiconductors
- TBA810
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Giradischi 33/45 giri 677 - SRE - Scuola Radio Elettra,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 455 x 125 x 265 mm / 17.9 x 4.9 x 10.4 inch
- Notes
-
controllo volume/tono - 2 velocità (33/45 giri) - giradischi BSR mod. P195/TE4940-535 012 AL1 - autostop a fine disco - impedenza altoparlante 8 Ω - coperchio di protezione.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
