• Country
• Italy

• Manufacturer / Brand
• SRE - Scuola Radio Elettra, Torino

• Year
• 1963 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 128500

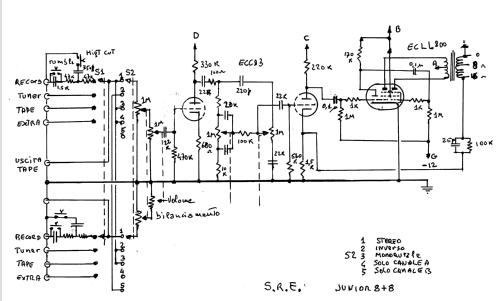

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC83 ECC83 ECLL800 ECLL800 EZ81

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 16 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Junior 8+8 - SRE - Scuola Radio Elettra,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 350 x 120 x 160 mm / 13.8 x 4.7 x 6.3 inch

• Notes
• Amplificatore stereofonico 8+8 watt, 4 ingressi commutabili: record, tuner, tape, extra.
  Questo amplificatore stereo era di progettazione della ditta Hirtel e veniva venduto in scatola di montaggio dalla SRE.
  Era venduto anche già montato a 60000 LIT.

• Price in first year of sale
• 46,000.00 LIT

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
