• Country
• Italy

• Manufacturer / Brand
• SRE - Scuola Radio Elettra, Torino

• Year
• 1954 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 133569

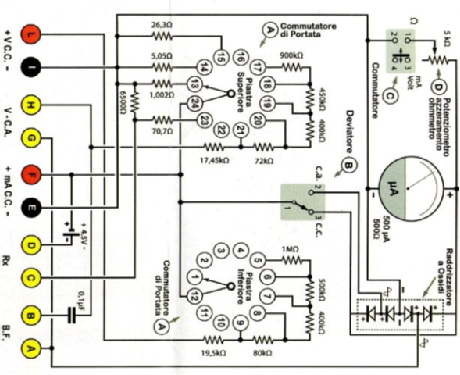

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 4,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Misuratore universale S.E.22 - SRE - Scuola Radio Elettra,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 250 x 180 x 55 mm / 9.8 x 7.1 x 2.2 inch

• Notes
• Tester 2000 ohm-volt,strumento a bobina mobile da 500 microAmper, radrizzatore ad ossido per la AC. Tensioni AC-DC 10/50/250/500/1000 volt, Corrente DC 0,5/10/50/250 mA. Resistenze da 0 a 1 Mohm in due portate X10 e X 1000. Anche questo strumento veniva montato dagli allievi con materiale ed istruzioni spedite dalla scuola.

• Literature/Schematics (1)
• - - Data from my own collection

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
