• Country
• Italy

• Manufacturer / Brand
• SRE - Scuola Radio Elettra, Torino

• Year
• 1977 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 207088

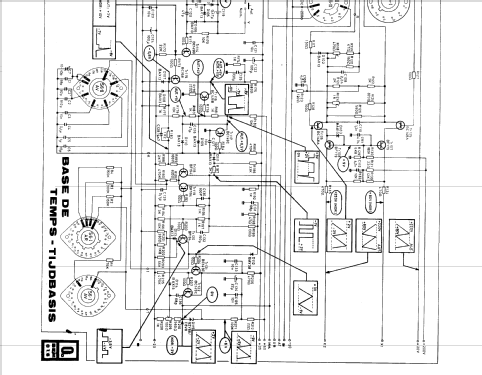

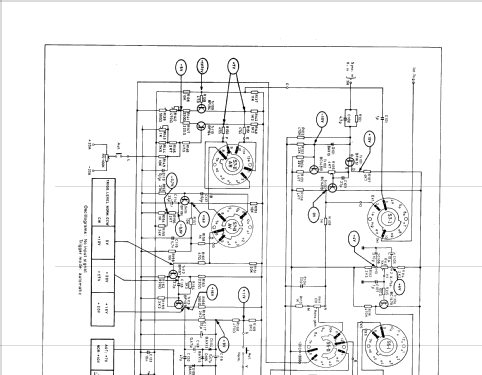

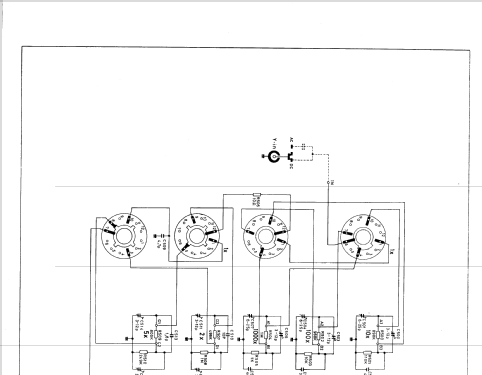

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• D10-160GH

• Number of Transistors
• 83

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscopio Elettrakit BEM-016 - SRE - Scuola Radio Elettra,

• Shape
• Rack

• Dimensions (WHD)
• 440 x 144 x 342 mm / 17.3 x 5.7 x 13.5 inch

• Notes
• Oscilloscopio doppia traccia, Crt 4",
  Banda passante amplificatore verticale 0-10 MHz,
  Sensibilità da 10 mV a 50 Volt in 12 step,
  Amplificatore orizzontale 0-1,5 MHz,
  Base dei tempi 0,5 microsec a 0,5 sec.
  Possibilità di vedere solo canale A o solo canale B,
  canali A e B in scansione alternata, somma de canali A e B.

• Price in first year of sale
• 16,695.00 BEF

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
