• Country
• Italy

• Manufacturer / Brand
• SRE - Scuola Radio Elettra, Torino

• Year
• 1952–1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100396

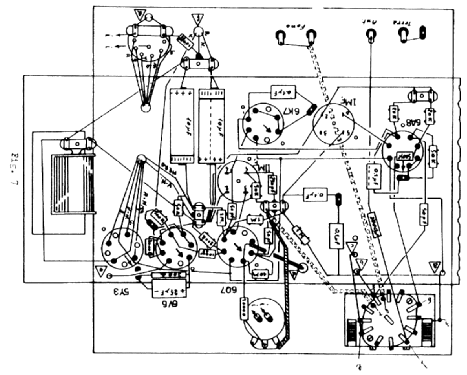

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6V6G or 6V6GT 5Y3G or 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radio Ricevitore - SRE - Scuola Radio Elettra,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 630 x 300 x 230 mm / 24.8 x 11.8 x 9.1 inch

• Notes
• Frequenza di ricezione OM 200-570 mt, OC 15-50 mt, più ingresso fono per giradischi. Il ricevitore veniva montato dall'allievo con materiale spedito dalla scuola, se si desiderava il mobile bisognava ordinarlo a parte.

• Mentioned in
• Corso Radio, Scuola Radio Elettra

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
