• Country
• Italy

• Manufacturer / Brand
• SRE - Scuola Radio Elettra, Torino

• Year
• 1952 ?

• Category
• Detector-Radio (Crystal or diode, without tubes/transistors)

• Radiomuseum.org ID
• 106633

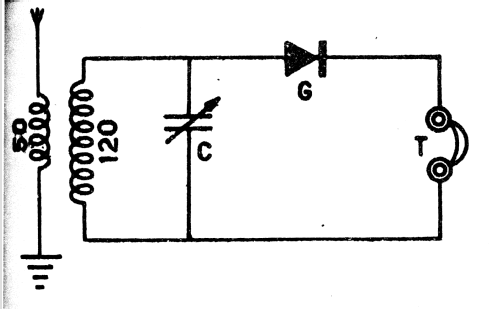

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)

• Wave bands
• Broadcast only (MW).

• Loudspeaker
• - For headphones or amp.

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Ricevitore a galena - SRE - Scuola Radio Elettra,

• Dimensions (WHD)
• 195 x 70 x 120 mm / 7.7 x 2.8 x 4.7 inch

• Notes
• Radio a galena, ricezione OM 550-1100 KHz, era la prima esperienza di ricezione montata degli allievi con materiale mandato dalla scuola.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
