• Country
• Italy

• Manufacturer / Brand
• SRE - Scuola Radio Elettra, Torino

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 245720

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECC82 EAA91

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220; 280 & 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

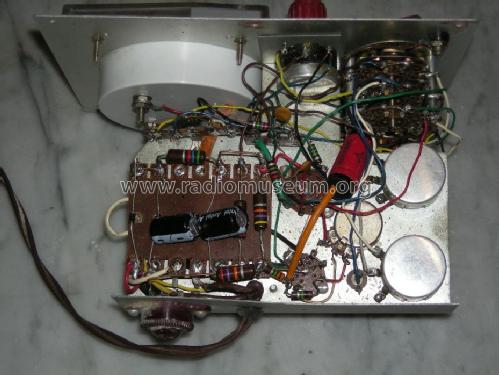

• Model: Voltmetro Elettronico kit - SRE - Scuola Radio Elettra,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 140 x 240 x 145 mm / 5.5 x 9.4 x 5.7 inch

• Notes

• Portate dello strumento:
  Capacità: 200pF: x10; x100; x1k; x10K; x100k; x1M; x10M
  Ohm: 1kohm: x1; x10; x100; x1k; x10k; x100k; x1M

  Vcc con possibilità di inversione della polarità dei puntali:
  1,5; 5; 15; 50; 150; 500; 1500
  Vac: 1,5; 5; 15; 50; 150; 500; 1500

  db: -10/+5

• Net weight (2.2 lb = 1 kg)
• 2.550 kg / 5 lb 9.9 oz (5.617 lb)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
