• Country
• Germany

• Manufacturer / Brand
• Stabo; Hildesheim

• Year
• 1988 ??

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 249419

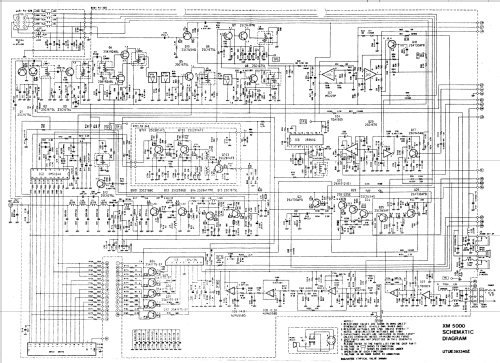

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

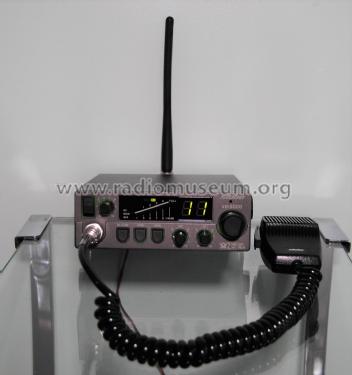

• Model: CB-Mobilfunkgerät XM 5000 - Stabo; Hildesheim

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 154 x 52 x 190 mm / 6.1 x 2 x 7.5 inch

• Notes

• CB-Mobilfunkgerät.

  40 Kanäle FM 4 Watt.

  Schalter für Sendeleistung HI / LOW.

  RF-Gain Regler.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
