Netzteil EP-925 Art.-Nr. 680
Stabo; Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Stabo; Hildesheim
- Year
- 2000 ??
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 262261
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Details
- Power Supply (not only Batt.El.)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Netzteil EP-925 Art.-Nr. 680 - Stabo; Hildesheim
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 150 x 145 x 300 mm / 5.9 x 5.7 x 11.8 inch
- Notes
-

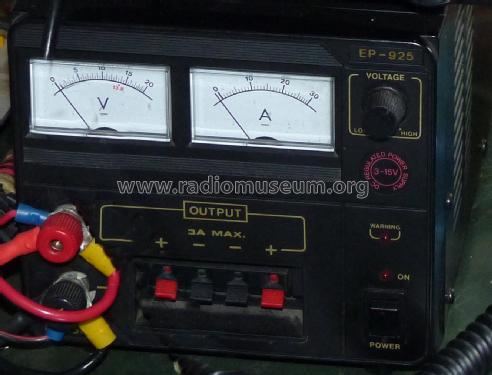

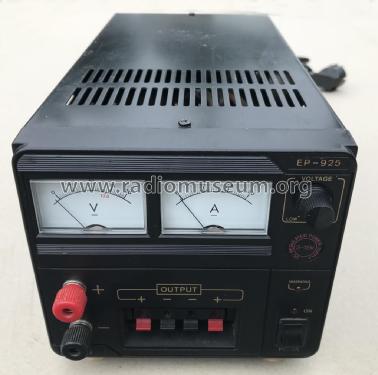

Elektronisch-längsgeregeltes Netzteil mit eingebautem Lüfter,
regelbare Ausgangsspannung 3-15V, 25A (max.30A)
Analoginstrumente für Spannung und Strom,
Anschluß über 4 mm Ø Laborbuchsen und Kastenklemmen.
Lieferbar ist auch eine Option EP-925T Art.-Nr.681 mit einer automatischen Ladeschaltung für 12V Bleiakkus.
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by a member from D. See "Data change" for further contributors.
