- Country
- Great Britain (UK)
- Manufacturer / Brand
- Standard Telephones and Cables Ltd. (STC); London, Foots Cray
- Year
- 1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 294395
-
- Brand: Micromesh tubes

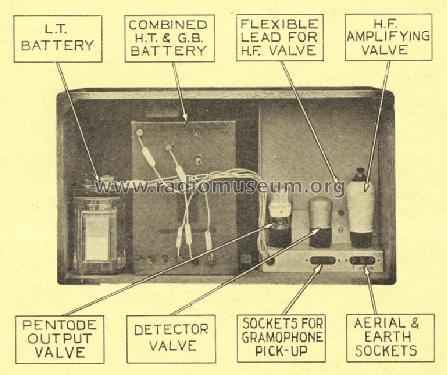

Image from User instructions
Image from User instructions
- Number of Tubes
- 3
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Standard 30MC - Standard Telephones and Cables
- Shape
- Tablemodel, low profile (big size).
- Notes
-
3 Valve Battery Receiver with Moving Coil Loud speaker
HT1 80 volts,
HT2 100 volts,
GB1 1.5 volts
GB2 3 to 4.5 volts
LT 2 volts
- Mentioned in
- - - Manufacturers Literature (User instructions)
- Author
- Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
