• Country
• Japan

• Manufacturer / Brand
• Standard Radio Corp. (SR), Tokyo

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 306809

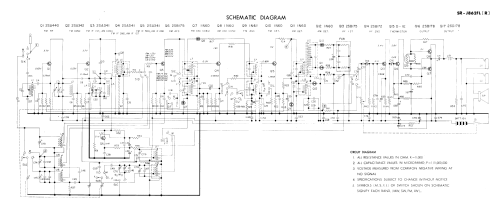

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 4 Band 10 Transistor SR-J862FL - Standard Radio Corp. SR, Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 120 x 52 mm / 8.7 x 4.7 x 2 inch

• Notes

• controllo volume - sintonia fine - maniglia di trasporto - antenna telescopica esterna - presa per cuffia - custodia in similpelle - frequency range: FM 88/108 MHz - SW 6/18 MHz - MW 530/1600 kHz - LW 150/255 kHz -

• Net weight (2.2 lb = 1 kg)
• 1.050 kg / 2 lb 5 oz (2.313 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
