C-5608D

Standard Radio Corp. (SR), Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Standard Radio Corp. (SR), Tokyo

Year
1990

Category
Amateur TRX: Transmitter/Receiver (and Transceiver)

Radiomuseum.org ID
152084

Schematics

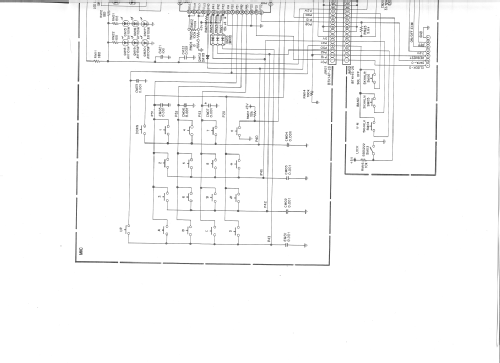

C-5608D; Standard Radio Corp. (ID = 1612744) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 1612714) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 1612715) Amat TRX — Standard Radio Corp. C-5608D (3)

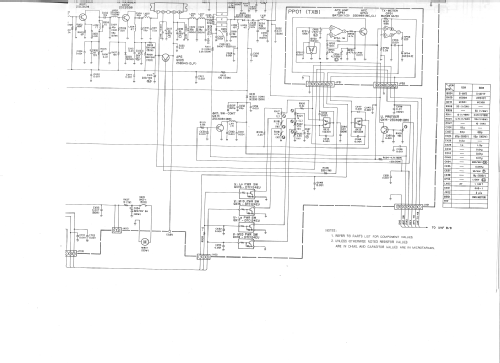

C-5608D; Standard Radio Corp. (ID = 1612716) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 1612717) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 1612719) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 1612720) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 1612721) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 1612723) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 1612724) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 1612726) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 1612727) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 1612728) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 1612729) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 1612730) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 1612731) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 1612732) Amat TRX — Standard Radio Corp. C-5608D (3)

C-5608D; Standard Radio Corp. (ID = 600496) Amat TRX — Standard Radio Corp. C-5608D (2)

C-5608D; Standard Radio Corp. (ID = 1611844) Amat TRX — Standard Radio Corp. C-5608D (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superhet, double/triple conversion; ZF/IF 21800//23050/455 kHz

Wave bands
Wave Bands given in the notes.

Power type and voltage
Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
3 W (unknown quality)

Material
Metal case

from Radiomuseum.org
Model: C-5608D - Standard Radio Corp. SR, Tokyo

Shape
Miscellaneous shapes - described under notes.

Dimensions (WHD)
150 x 50 x 210 mm / 5.9 x 2 x 8.3 inch

Notes
Standard Mobil-VHF/UHF-FM-Transceiver C-5608D.
Frequenzbereiche: 144-148 MHz und 430-440 MHz mit Datengaratie; 110-180 MHz und 320-470 MHz (tranceive) sowie 830-1000 MHz (nur Empfang) ohne Datengaratie; 20 Speicher je Amateurfunkband; P_out: 50 W/5 W/3 W auf 2 m, 40 W/5 W/3 W auf 70 cm.

Net weight (2.2 lb = 1 kg)
2 kg / 4 lb 6.5 oz (4.405 lb)

Mentioned in
RICOFUNK-Katalog 1990/91

Literature/Schematics (1)
beam Amateurfunk-Geräteführer '92

Author
Model page created by Bernd P. Kieck. See "Data change" for further contributors.
