• Country
• Hungary

• Manufacturer / Brand
• Standard; Budapest

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98159

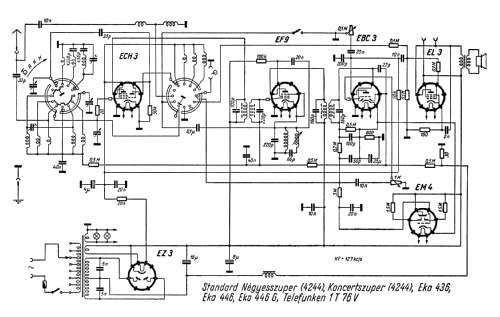

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH3 EF9 EBC3 EL3 EM4 EZ3

• Main principle
• Superheterodyne (common); ZF/IF 127 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Koncertszuper 4244 G - Standard; Budapest

• Shape
• Tablemodel, with any shape - general.

• Price in first year of sale
• 405.00 pengö

• Mentioned in
• Rádiókészülékek Kapcsolásai 1936-56

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.

• Other Models

• Here you find 156 models, 147 with images and 88 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
