• Country
• Hungary

• Manufacturer / Brand
• Standard; Budapest

• Year
• 1940 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149232

• Number of Tubes
• 6

• Valves / Tubes
• ECH3 EF9 EBC3 EL3 EM4 EZ3

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

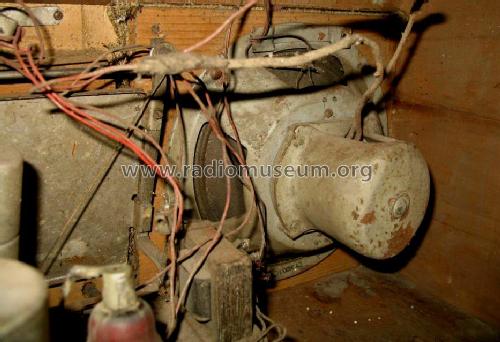

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Unknown - Standard; Budapest

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 522 x 315 x 280 mm / 20.6 x 12.4 x 11 inch

• Notes
• Similar circuit diagram Standard 2044.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.

• Other Models

• Here you find 156 models, 147 with images and 88 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Standard; Budapest
