Cassette Recorder SR-100

Standard Radio Corp. (SR), Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1966/1967 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 233748

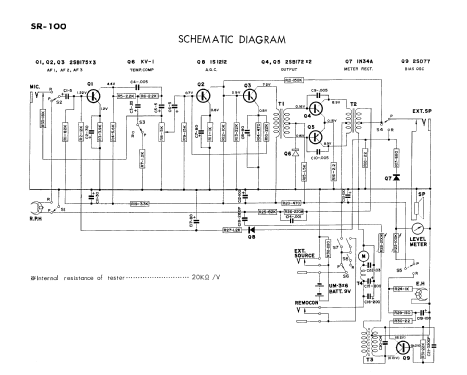

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Batteries / addl. power jack / 6 x 1,5 / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cassette Recorder SR-100 - Standard Radio Corp. SR, Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 110 x 55 x 170 mm / 4.3 x 2.2 x 6.7 inch
  • Notes

  • Standard SR-100 is a battery operated portable cassette tape recorder.
    This YouTube video shows mechanics and function of this model.

    Not to be confused with Standard SR-100, a three tube pocket radio.

    Accessories:

    • Dynamic microphone with start-stop switch
    • Recording tape cassette (C60)
    • Carrying case
  • Mentioned in
  • -- Schematic
  • Author
  • Model page created by Bernhard Nagel. See "Data change" for further contributors.
