• Country
• Japan

• Manufacturer / Brand
• Standard Radio Corp. (SR), Tokyo

• Year
• 1966 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180537

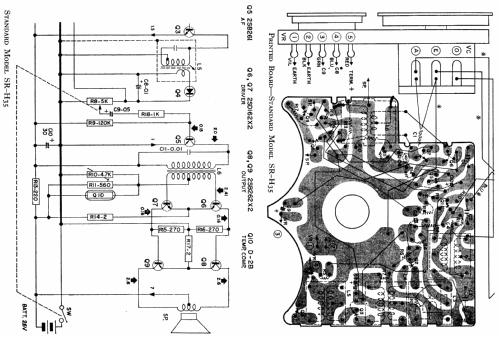

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA399 2SA338 2SC155 2SB261 2SD162 2SD162 2SB262 2SB262

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 X 1.3 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Micronic Ruby SR-H35 - Standard Radio Corp. SR, Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
