Micronic Ruby SR-Q460F

• Country
• Japan

• Manufacturer / Brand
• Standard Radio Corp. (SR), Tokyo

• Year
• 1966 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 102106

• Picture

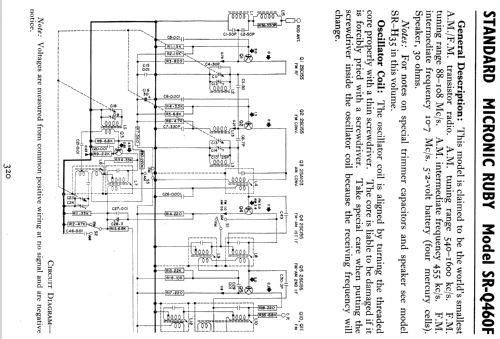

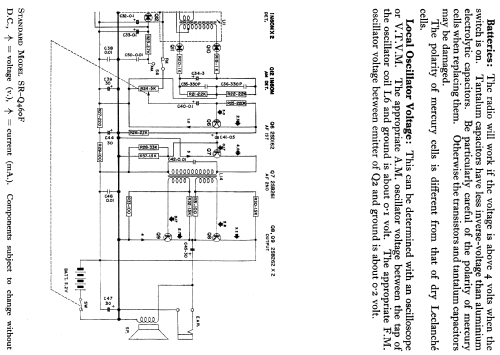

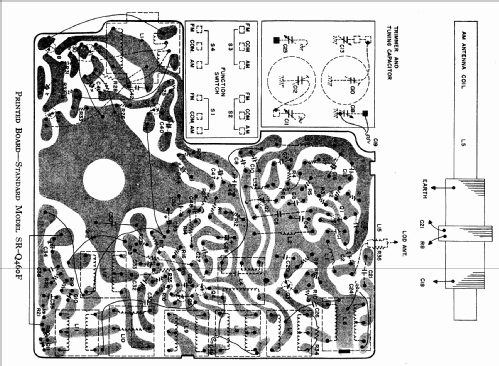

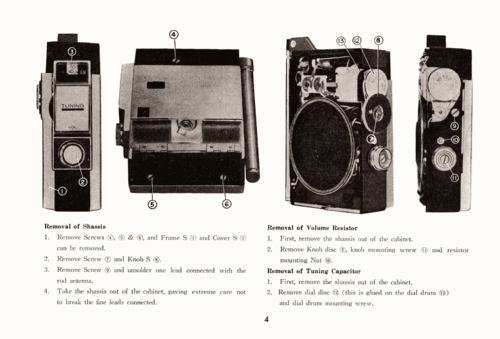

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SC155 2SC155 2SA103 2SC155 2SC155 2SD162 2SB261 2SB262 2SB262 1N60 1N60 1N60

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1.3 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch

• Power out
• 0.05 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Micronic Ruby SR-Q460F - Standard Radio Corp. SR, Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 60 x 81 x 29 mm / 2.4 x 3.2 x 1.1 inch

• Notes
• AM/FM portable Radio with built-in telescopic antenna.
  Power supply: 5.2 volt battery (4 Mercury cells).

• Source of data
• -- Schematic

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 258 models, 245 with images and 110 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Standard Radio Corp. (SR), Tokyo
