Mini-Master SR-200

• Country
• Japan

• Manufacturer / Brand
• Standard Radio Corp. (SR), Tokyo

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 140342

• Picture
• Schematics

Previous Next

Previous Next

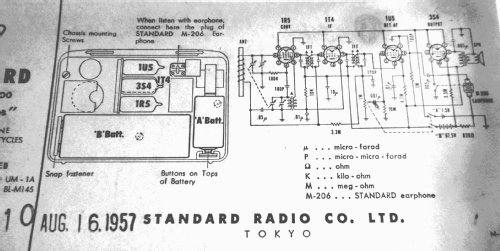

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1U5 3S4 1R5 1T4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 1,5 & 67,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Mini-Master SR-200 - Standard Radio Corp. SR, Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 185 x 130 x 50 mm / 7.3 x 5.1 x 2 inch

• Notes
• The Standard Mini-Master SR-200 has been made at leastin August 1957 as a picture sent by a guest shows.

• Source of data
• -- Schematic

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
