Muse SR-220E
Standard Radio Corp. (SR), Tokyo
- Country
- Japan
- Manufacturer / Brand
- Standard Radio Corp. (SR), Tokyo
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 233724
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 67.5 & 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Muse SR-220E - Standard Radio Corp. SR, Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 155 x 110 x 45 mm / 6.1 x 4.3 x 1.8 inch
- Notes
-

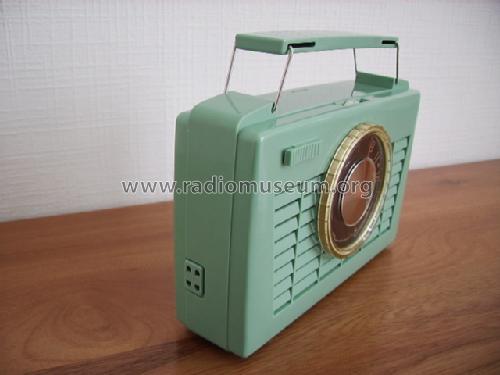

The Standard "Muse" SR-220E is a medium wave four tube battery powered portable receiver.
Dial with CD marks to indicate the frequencies for Civil Defense (640 & 1240 kHz).
- Net weight (2.2 lb = 1 kg)
- 0.610 kg / 1 lb 5.5 oz (1.344 lb)
- Author
- Model page created by Christophe Thevenin. See "Data change" for further contributors.
