11 Transistor Solid State FM/MW/LW SR-RK522FL

Standard Radio Corp. (SR), Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1973 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 150034

 Technical Specifications

  • Number of Transistors
  • 11
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 230 / C: 3 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 11 Transistor Solid State FM/MW/LW SR-RK522FL - Standard Radio Corp. SR, Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 205 x 130 x 53 mm / 8.1 x 5.1 x 2.1 inch
  • Notes

  • Frequency range:

    FM 88 - 108 MHz
    MW 530 - 1605 kHz
    LW 150 - 260 kHz

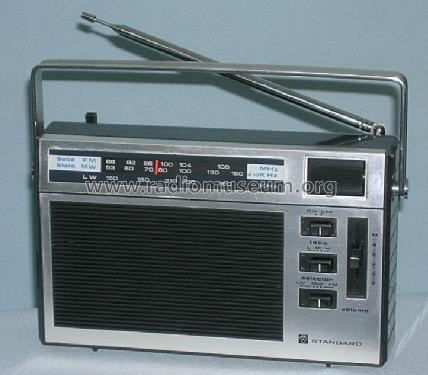

    Frontally: horizontal rubber cylinder for tuning and three horizontal selectors, respectively on/off, L-M-H tone, LW/MW/FM; a slide with numerical graduation for the volume runs vertically.

    Electrical socket with 0.7 cm pitch, with 1.5 cm entry, located on the rear, near the battery door, while on the left side is the earphone socket. Telescopic antenna not retractable, 7 sections, 96 cm. On the speaker the values ​​1 W max and 8 Ω. Rigid metal handle, with full excursion.

    FTZ 111/215

  • Net weight (2.2 lb = 1 kg)
  • 1 kg / 2 lb 3.2 oz (2.203 lb)
  • Author
  • Model page created by Museum Roggenhofer. See "Data change" for further contributors.
