- Country
- Japan
- Manufacturer / Brand
- Standard Radio Corp. (SR), Tokyo
- Year
- 1966–1970 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 327716

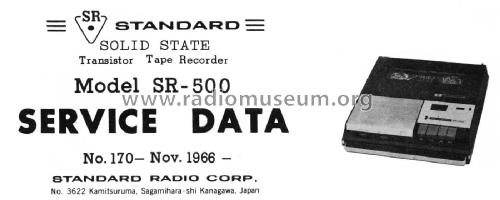

Bild aus dem Service Manual (SM)
Bild aus dem Service Manual (SM)
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Line / Batteries (any type) / 50-60Hz, 115; 230 / D: 8 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: SR-500 - Standard Radio Corp. SR, Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 291 x 303 x 86 mm / 11.5 x 11.9 x 3.4 inch
- Notes
-
2 track mono, 2 speeds - 4.75 and 9.5 cm/sec. Reel diameter 13 cm, power cord and microphone in one compartment in the bottom.
2 Spur mono, 2 Geschwindigkeiten 4.75 und 9.5, Max. Spulendurchmesser 13 cm, Netzkabel und Mikrofon in einem Fach in der Unterseite
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Price in first year of sale
- 143.95 AUS $
- Mentioned in
- Mingay's Price Service (Aug 1968 to Feb 1970.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Service Data No. 170, Nov. 1966.)
- Author
- Model page created by Roger Lagler. See "Data change" for further contributors.
