2m FM Transceiver SR-C1400
Standard Radio Corp. (SR), Tokyo
- Country
- Japan
- Manufacturer / Brand
- Standard Radio Corp. (SR), Tokyo
- Year
- 1972
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 171275

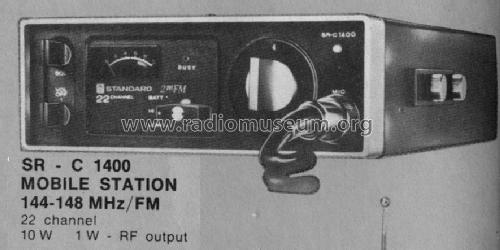

Advert mag. CQ elettronica (Italy) 01/1973
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: 2m FM Transceiver SR-C1400 - Standard Radio Corp. SR, Tokyo
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 165 x 58 x 255 mm / 6.5 x 2.3 x 10 inch
- Notes
-
Mobile station 144-148 MHz/FM, 22 channel, 1/10 W. RF.
Receiver sensitivity 0.4 µV at 20 dB.
- Literature/Schematics (1)
- Advert mag. CQ elettronica (Italy) 01/1973
- Literature/Schematics (2)
- -- Original prospect or advert (CQ Elettronica, Italy CD editor, number 12 December 1971)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
