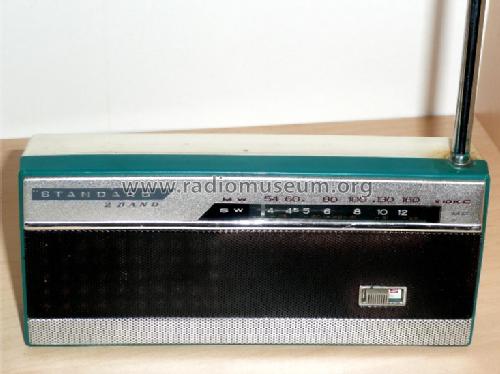

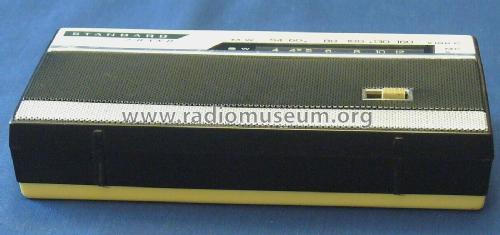

2 Band SR-F205
Standard Radio Corp. (SR), Tokyo
- Country
- Japan
- Manufacturer / Brand
- Standard Radio Corp. (SR), Tokyo
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 92006
Hülle aus echtem Leder
eBay item number:134560425626
eBay item number:134560425626
eBay item number:134560425626
eBay item number:134560425626
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 3 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
- Power out
- 0.15 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 2 Band SR-F205 - Standard Radio Corp. SR, Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 163 x 75 x 34 mm / 6.4 x 3 x 1.3 inch
- Notes
-
Standard SR-F205;

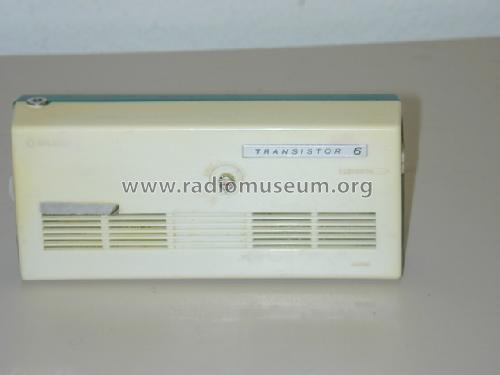

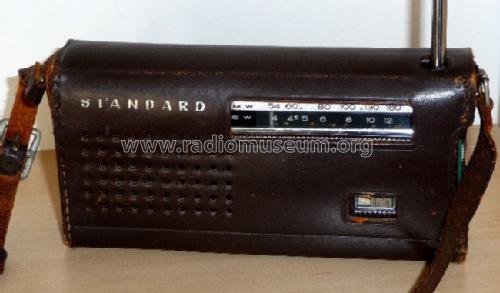

SW: 3.9 - 12 MHz, screw on telescopic aerial. Wird auf der Ledertasche auch als TR-6 und auf der Gehäuserückseite als Transistor 6 bezeichnet.See also model SR-F205L with Long Wave instead of the SW range.
- Net weight (2.2 lb = 1 kg)
- 0.4 kg / 0 lb 14.1 oz (0.881 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Marc Gianella. See "Data change" for further contributors.
