SR-F416L
Standard Radio Corp. (SR), Tokyo
- Country
- Japan
- Manufacturer / Brand
- Standard Radio Corp. (SR), Tokyo
- Year
- 1965/1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 180545

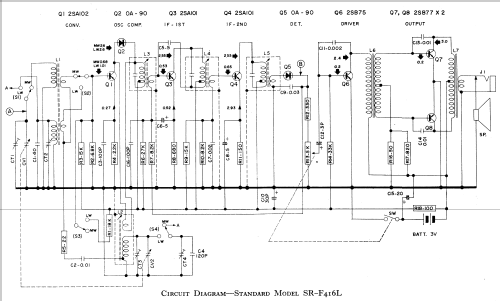

Bild aus dem Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / AA: 2 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.1 W (0.16 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: SR-F416L - Standard Radio Corp. SR, Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 62 x 106 x 19 mm / 2.4 x 4.2 x 0.7 inch
- Notes
-
Standard Broadcast/MW 540-1600 kHz, Longwave 150-250 kHz.
Earphone jack.
- Net weight (2.2 lb = 1 kg)
- 0.150 kg / 0 lb 5.3 oz (0.33 lb)
- Source of data
- -- Original-techn. papers.
- Literature/Schematics (1)
- Radio And Television Servicing books (R&TVS)
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
