Transistor 7 SR-G24
Standard Radio Corp. (SR), Tokyo
- Country
- Japan
- Manufacturer / Brand
- Standard Radio Corp. (SR), Tokyo
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103351

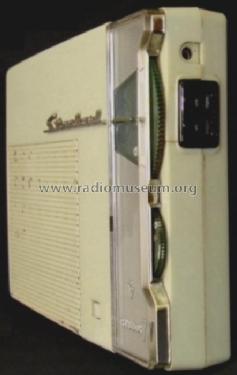

Thanks for Mr. Konkapot Hungary.
Thanks for Mr. Konkapot Hungary.
Thanks for Mr. Konkapot Hungary.
Thanks for Mr. Konkapot Hungary.
Thanks for Mr. Konkapot Hungary.
Thanks for Mr. Konkapot Hungary.
- Number of Transistors
- 7
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Batteries / addl. power jack / AA: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Transistor 7 SR-G24 - Standard Radio Corp. SR, Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 171 x 115 x 28 mm / 6.7 x 4.5 x 1.1 inch
- Notes
-
This radio mounts oval transistors. The model SR-G24A is a 1959 revision with different transistors and without the 3 jacks on the back (phono, external speaker and external source).
- Mentioned in
- Collector's Guide To TrR1 Bunis trans.94 (1996, page 263)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
