• Country
• Japan

• Manufacturer / Brand
• Standard Radio Corp. (SR), Tokyo

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 195750

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 3 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

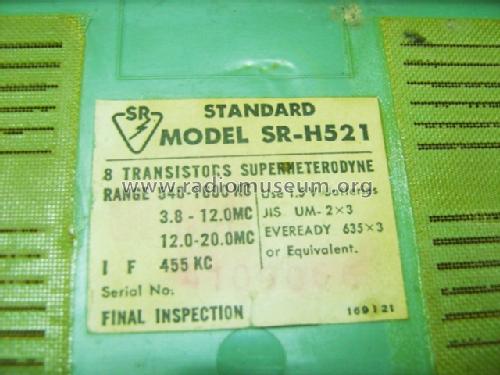

• Model: Transistor 8 Philharmonic SR-H521 - Standard Radio Corp. SR, Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 230 x 103 x 48 mm / 9.1 x 4.1 x 1.9 inch

• Notes
• The Standard model SR-H521 "Philharmonic" is a 3-band portable, SW1 = 3.8 to 12 mc, SW2 = 12 to 20 mc and BC 540 - 1600 kc. It has a separate fine dial.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• External source of data
• Guest Steve Marcantonio.

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
