• Country
• Japan

• Manufacturer / Brand
• Standard Radio Corp. (SR), Tokyo

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80639

Click on the schematic thumbnail to request the schematic as a free document.

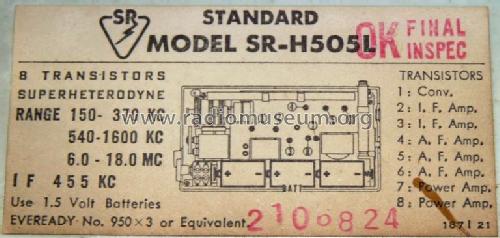

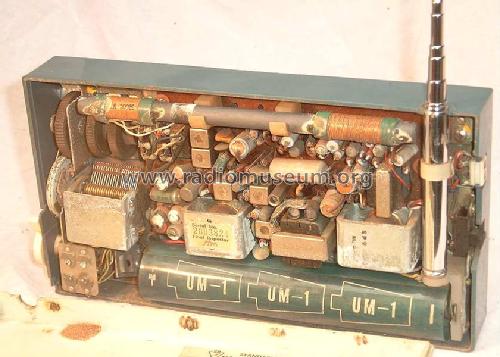

• Number of Transistors
• 8

• Semiconductors
• 2SA70 2SA101 2SA101 2SB175 2SB175 2SB175 2SB156 2SB156

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 0.43 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: SR-H505L Hi-Fi - Standard Radio Corp. SR, Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 130 x 50 mm / 9.4 x 5.1 x 2 inch

• Notes
• 3-Band all Wave HI-FI 2-Speaker Portable, 2 Lautsprecher (7,5 + 9 cm), 2 Kopfhöreranschlüsse über Klinkenbuchsen 3,5 mm, Tonregler, Ferritantenne 18 cm,

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Price in first year of sale
• 2,860.00 BFr

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
