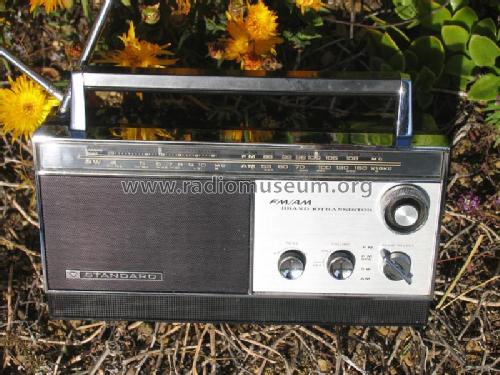

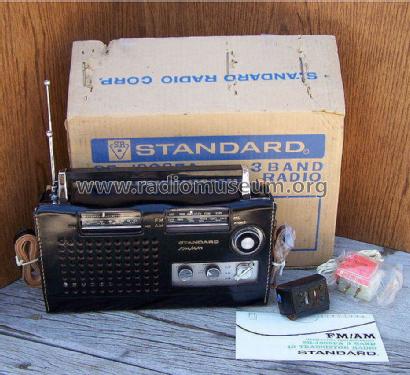

SR-J808FA

Standard Radio Corp. (SR), Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1970 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 119897

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: SR-J808FA - Standard Radio Corp. SR, Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 9.75 x 6.5 x 2.5 inch / 248 x 165 x 64 mm
  • Notes

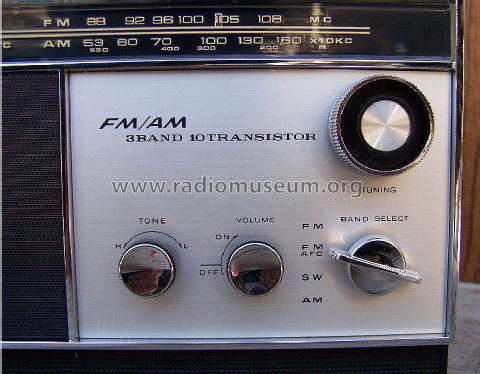

  • Standard SR-J808FA, 3 Band 10 Transistor;

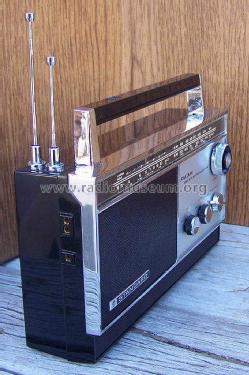

    Separate SW scale, FM AFC, SW 4.0 to 10.0 MHz, two built-in telescopic antennas.
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
