• Country
• Japan

• Manufacturer / Brand
• Standard Radio Corp. (SR), Tokyo

• Year
• 1969 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 219021

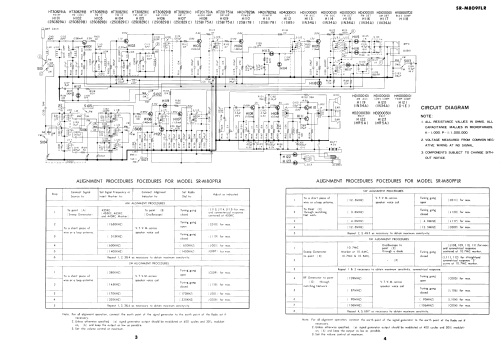

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 230 / 3 x 1,5 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

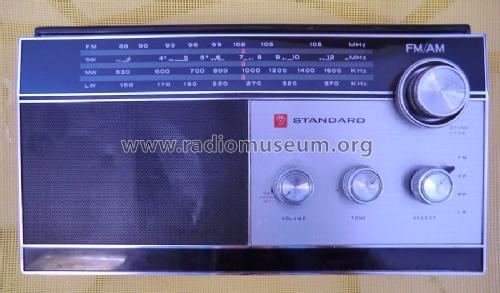

• Model: SR-M809FLR - Standard Radio Corp. SR, Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 249 x 138 x 58 mm / 9.8 x 5.4 x 2.3 inch

• Notes

• Ranges:
  FM 88 - 108 MHz
  SW 4 - 12 MHz
  MW 530 - 1605 kHz
  LW 150 - 370 kHz.
  Controls: on/off-volume, tone, SW fine tuning.
  Sockets: mpx, audio, 2 earphones. Electrical connection with poles spaced 5 mm.
  Telescopic antenna 7 elements, 70 cm.

  Made in Japan 703

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Author
• Model page created by Felice Nicolini. See "Data change" for further contributors.
