4 Band 14 Transistor SR-N512FL
Standard Radio Corp. (SR), Tokyo
- Country
- Japan
- Manufacturer / Brand
- Standard Radio Corp. (SR), Tokyo
- Year
- 1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 91994

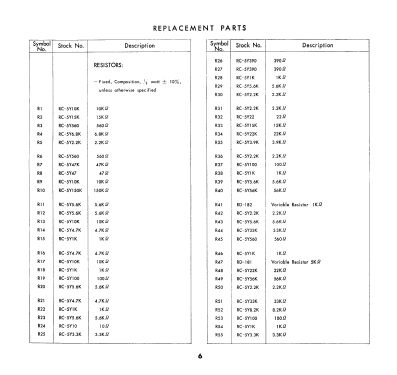

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 14
- Semiconductors
- 2SA71 2SA235 2SB175 2SA70 2SA70 2SA70 2SA103 2SA101 2SA101 2SB75 2SB75 2SB77 2SB156 2SB156 1N34A 1N34A 1N34A 1N34A 1N34A
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 4 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 6 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 0.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 4 Band 14 Transistor SR-N512FL - Standard Radio Corp. SR, Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 285 x 175 x 98 mm / 11.2 x 6.9 x 3.9 inch
- Notes
-
Switchable AFC and external car antenna. Jacks for MPX (requires ext. stereo decoder), Audio out, headphones or ext. speaker and power supply unit..
Two loudspeakers: 1x 10 cm and 1x 5 cm diameter.
- Net weight (2.2 lb = 1 kg)
- 3.2 kg / 7 lb 0.8 oz (7.048 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Marc Gianella. See "Data change" for further contributors.
