Transistor Television SR-TV3A Europe & US
Standard Radio Corp. (SR), Tokyo
- Country
- Japan
- Manufacturer / Brand
- Standard Radio Corp. (SR), Tokyo
- Year
- 1975 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 91995

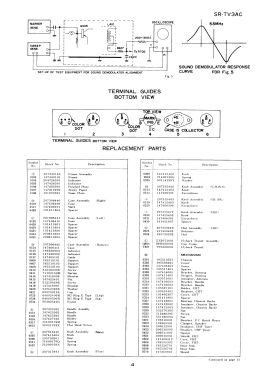

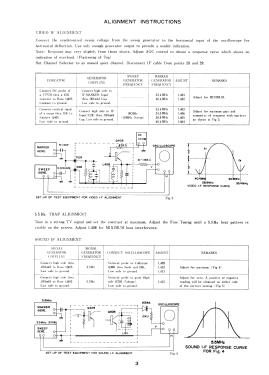

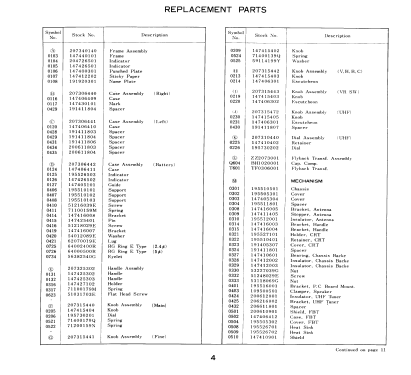

Bild aus dem Service Manual

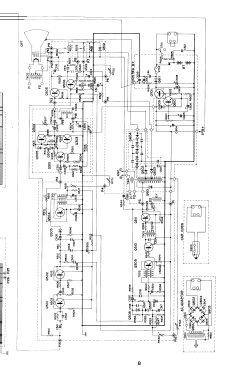

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- 28
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Storage and/or dry batteries / 10-15; 9 x 1,5 V Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Transistor Television SR-TV3A [Europe & US] - Standard Radio Corp. SR, Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 85 x 180 x 110 mm / 3.3 x 7.1 x 4.3 inch
- Notes
-
Standard SR-3 TV Transistor Television, SR-TV3A;
7 cm b/w TV with US standard VHF turret & UHF dial tuner, note:
Similar typed unit also known on the European market with 5,5 MHz audio IF for standard CCIR B/G reception, optional AC adaptors and car-cords.
Also sold most similar as Symphonic Solid State 3, TPS-5050 & Symphonic Mini TV TPS-30 in the US.
- Net weight (2.2 lb = 1 kg)
- 1 kg / 2 lb 3.2 oz (2.203 lb)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
- Other Models
-
Here you find 258 models, 245 with images and 110 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Standard Radio Corp. (SR), Tokyo
Collections
The model Transistor Television is part of the collections of the following members.
Forum contributions about this model: Standard Radio Corp.: Transistor Television SR-TV3A
Threads: 1 | Posts: 1
Caratteristiche tecniche:
Sistema di ricezione: CCIR TV stantards
Canali: VHF 2-12, UHF 21-83, ( VHF Italia A-H )
Transistor: 28, Diodi: 27, Termistori: 3
Tubo catodico: Super miniatura, collo diametro 13mm, catodo a riscaldamento diretto, deflessione 50°, fuoco automatico.
Frequenza intermedia: video 45,75 Mc, audio 41,25 Mc
Sensibilità max: 10uV/5V P-P
Potenza d'uscita audio: 150mW
Consumo: batterie 3 Watt, AC 9,8 Watt
Venduto in Europa completo di: adattatore per antenna esterna VHF, alimentatore rete 220 V AC, cavo alimentazione da accendisigari auto, manuale d'istruzione in francese, inglese e tedesco, schema elettrico e lista componenti.
Attachments
- Libretto istruzioni (129 KB)

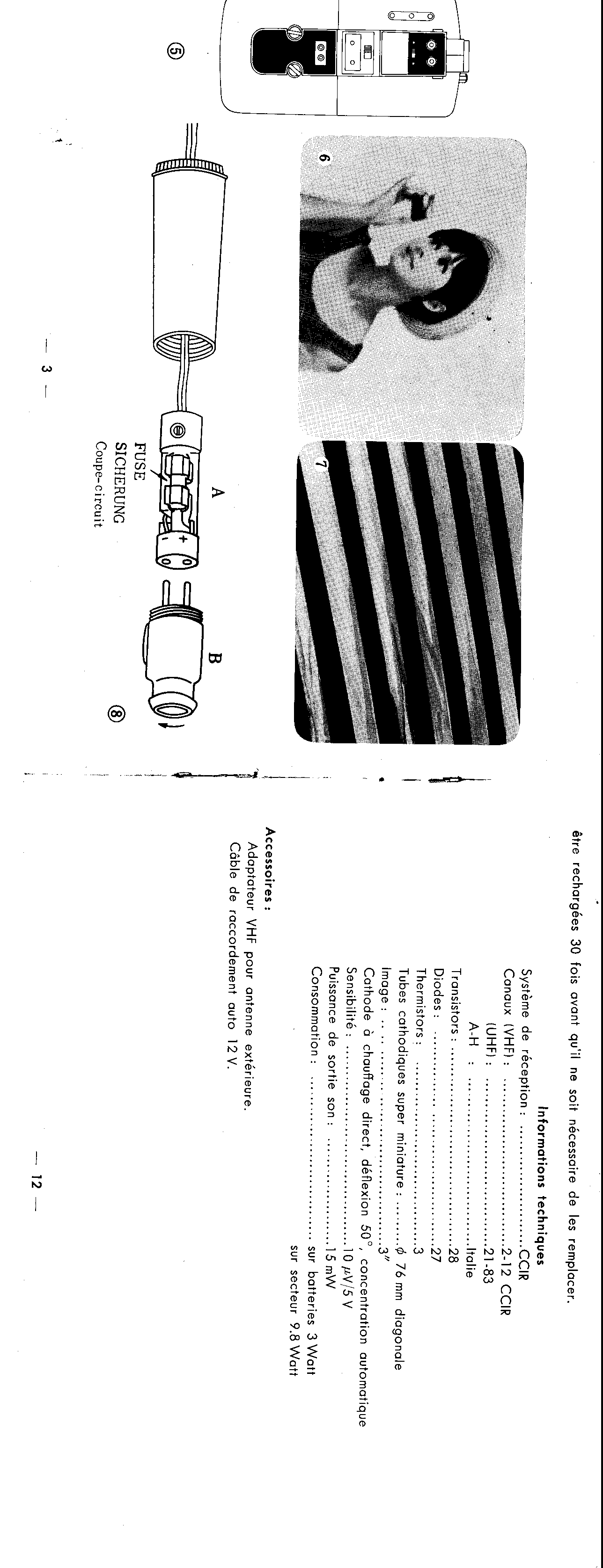

- Operating Instruction_internal_pages_5,10-7,8 (177 KB)
