- Country
- Japan
- Manufacturer / Brand
- Standard Radio Corp. (SR), Tokyo
- Year
- 1976 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 231331
radio portatile della mia collezione
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 3 x 1,5 UM3 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TR6 - Standard Radio Corp. SR, Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 160 x 75 x 33 mm / 6.3 x 3 x 1.3 inch
- Notes
-

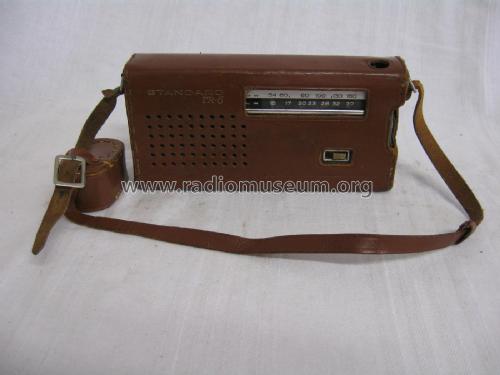

Standard TR-6 with leather case, screw in telescopic antenna stored in leather case when not in use, earphone jack. Made in Ireland
- Net weight (2.2 lb = 1 kg)
- 0.480 kg / 1 lb 0.9 oz (1.057 lb)
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
- Other Models
-
Here you find 258 models, 245 with images and 110 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Standard Radio Corp. (SR), Tokyo
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Standard Radio Corp.: TR6
Threads: 1 | Posts: 4
Hallo
Habe dieses Radio ersteigert,beim Versand Ferritstab 3mal gebrochen.
Kann man den Ferritstab kleben und wenn ja welchen Kleber verwenden.
Dank im voraus.
Gruss
Gerhard Härtl
Gerhard Härtl, 21.Feb.14
