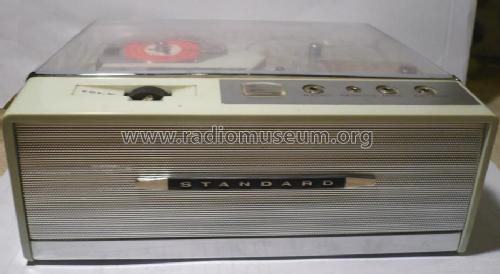

Unicorder 61 SR-F61RT
Standard Radio Corp. (SR), Tokyo
- Country
- Japan
- Manufacturer / Brand
- Standard Radio Corp. (SR), Tokyo
- Year
- 1965 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 245048
Features Papers
Click on the schematic thumbnail to request the schematic as a free document.

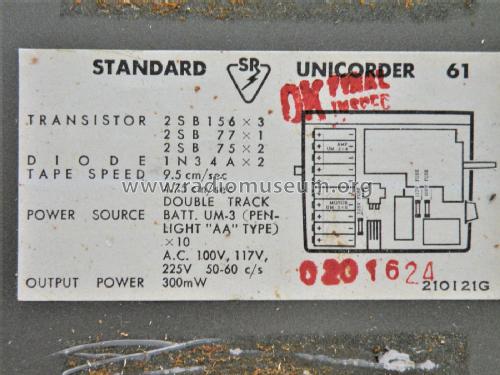

- Number of Transistors
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Line / Batteries (any type) / 100; 117; 225 / AA: 1 ×1,5 / Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 0.3 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Unicorder 61 SR-F61RT - Standard Radio Corp. SR, Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 200 x 166 x 74 mm / 7.9 x 6.5 x 2.9 inch
- Net weight (2.2 lb = 1 kg)
- 2.8 kg / 6 lb 2.7 oz (6.167 lb)
- Price in first year of sale
- 355.00 SFR
- Mentioned in

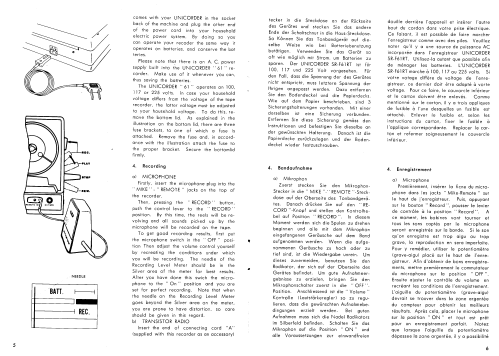

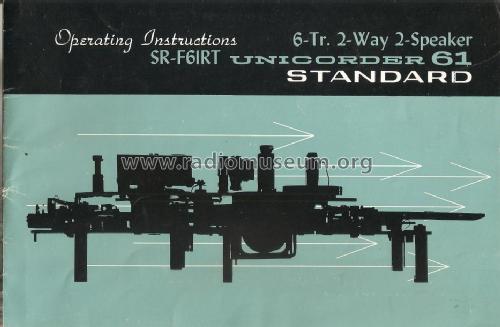

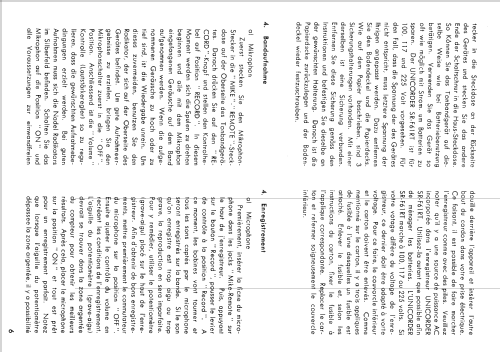

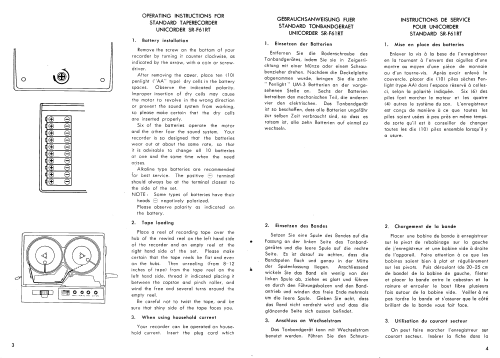

- -- Original-techn. papers.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
